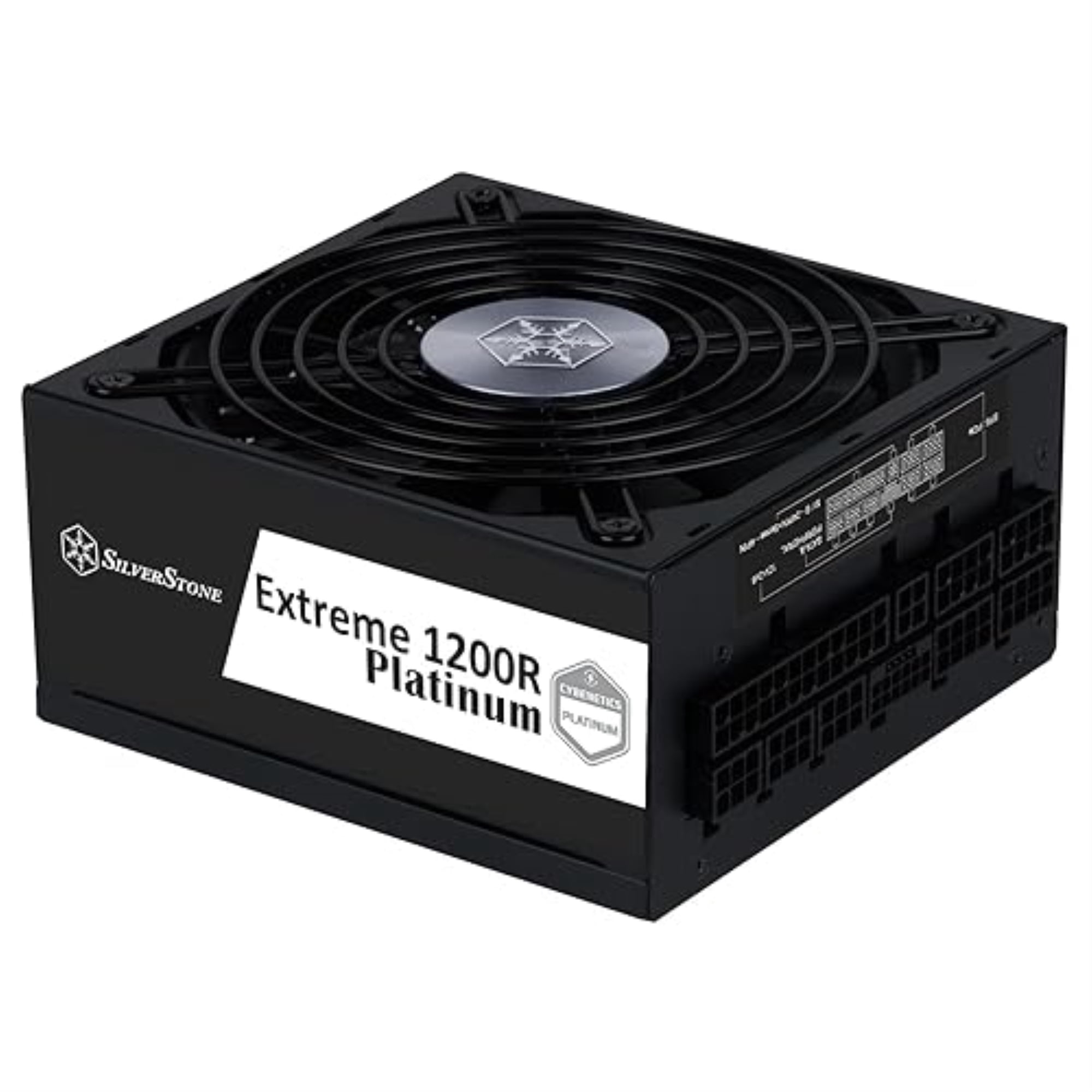

SilverStone Technologies EX1200R-PL Extreme 1200R Cybenetics Platinum 1200W PCIe 5 Fully Modular SFX-L Power Supply - Black
Product details
| Management number | 230508532 | Release Date | 2026/06/18 | List Price | US$143.89 | Model Number | 230508532 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<b>Extreme 1200R Platinum</b><br><br><b>Cybenetics Platinum 1200W PCIe 5 Fully Modular SFX-L Power Supply</b><br><br>• SFX-L form factor for Small Form Factor (SFF) ecosystem usage<br><br>• Supports 12V-2x6 PCIe connector with SFX12V 4.1 and PCIe Gen 5 standard<br><br>• 1200W continuous power output rated for 24/7 operation<br><br>• Class-leading single +12V rail with 100A<br><br>• High efficiency with Cybenetics Platinum certification<br><br>• Silent running 120mm FDB fan with advanced semi-fanless operation<br><br>• 24/7 continuous power output with 50? operating temperature<br><br>• High quality construction with all Japanese capacitors<br><br>• The modular cables features a newly crafted embossed wire design, streamlining the assembly process for users and enhancing overall system convenience<b>Model (safety certification) </b><br>SST-SL1200MCPT-A<b>Color</b><br>Black (lead-free paint)<b>Max. DC Output</b><br>1,200W<b>Power density</b><br>1163W/L<b>Load Range</b><br><b>Output / +3.3V / +5V / +12V / +5VSB / -12V</b><br> Max.(Amps) / 20A / 20A / 100A / 3.0A / 0.3A<br> Min.(Amps) / 0A / 0A / 0A / 0A / 0A<br> Range (%) / +/-3% / +/-3% / +/-3% / +/-5% / +/-10%<br> Line Reg.(%) / +/-1% / +/-1% / +/-1% / +/-1% / +/-1%<br> Ripple(mVp-p) / 40mV / 40mV / 80mV / 40mV / 80mV<b>Combined +3.3V and +5V</b><br>100W<b>Combined +12V</b><br>1,200W<b>Input Voltage</b><br>90 to 264 Vrms<b>Input Frequency Range</b><br>47Hz to 63Hz<b>PFC</b><br>Active PFC (PF>0.9 at full load)<b>Efficiency</b><br>89% to 91% overall efficiency<b>MTBF</b><br>100,000 hours<b>Operating temperature</b><br>0<sup>o</sup>C to 50<sup>o</sup>C<b>Protection</b><br> Over Current Protection<br> Over Power Protection<br> Over Voltage Protection<br> Short Circuit Protection<br> Over Temperature Protection<b>Connectors</b><br> 1 x 24 / 20-Pin motherboard connector<br> 2 x 8 / 4-Pin EPS / ATX 12V connector<br> 4 x 8 / 6-Pin PCIe connectors<br> 1 x 12+4-Pin 12V-2x6 connector<br> 8 x SATA connector<br> 3 x 4-Pin Peripheral connector<br> 1 x 4-Pin Floppy adapter connector<b>Cooling System</b><br>Single 120mm FDB bearing fan<b>Noise Level</b><br>0 to 36 dBA<b>Certification</b><br>Cybenetics Platinum<b>Form factor</b><br>SFX-L<b>Other</b><br>GPU Support list
SilverStone Technologies EX1200R-PL Extreme 1200R Cybenetics Platinum 1200W PCIe 5 Fully Modular SFX-L Power Supply - Black| Computer power supply form factor | SFX-L |
|---|---|
| Features | Modular |
| Brand | SilverStone Technology |
| Input voltage | 90 V |
| Size | 120 mm |
| Has written warranty | No |
| Accessories | SFX to ATX bracket |
| Color | Black |
| Model name | Extreme 1200R Platinum |
