Portable Metal 16 Channels 100MHz Kit Logic Analyzer + Powerful Oscilloscope

<p>Adjustable Threshold:0 ~ 5V (Continuous)</p><p>Advanced Trigger:16 stages</p><p>Protected Voltage: ±30 V (DC+AC peak)</p><p>Input Characteristics: 250K // ~7 pF</p><p>Input Channel Analog Bandwidth:50MHz</p>

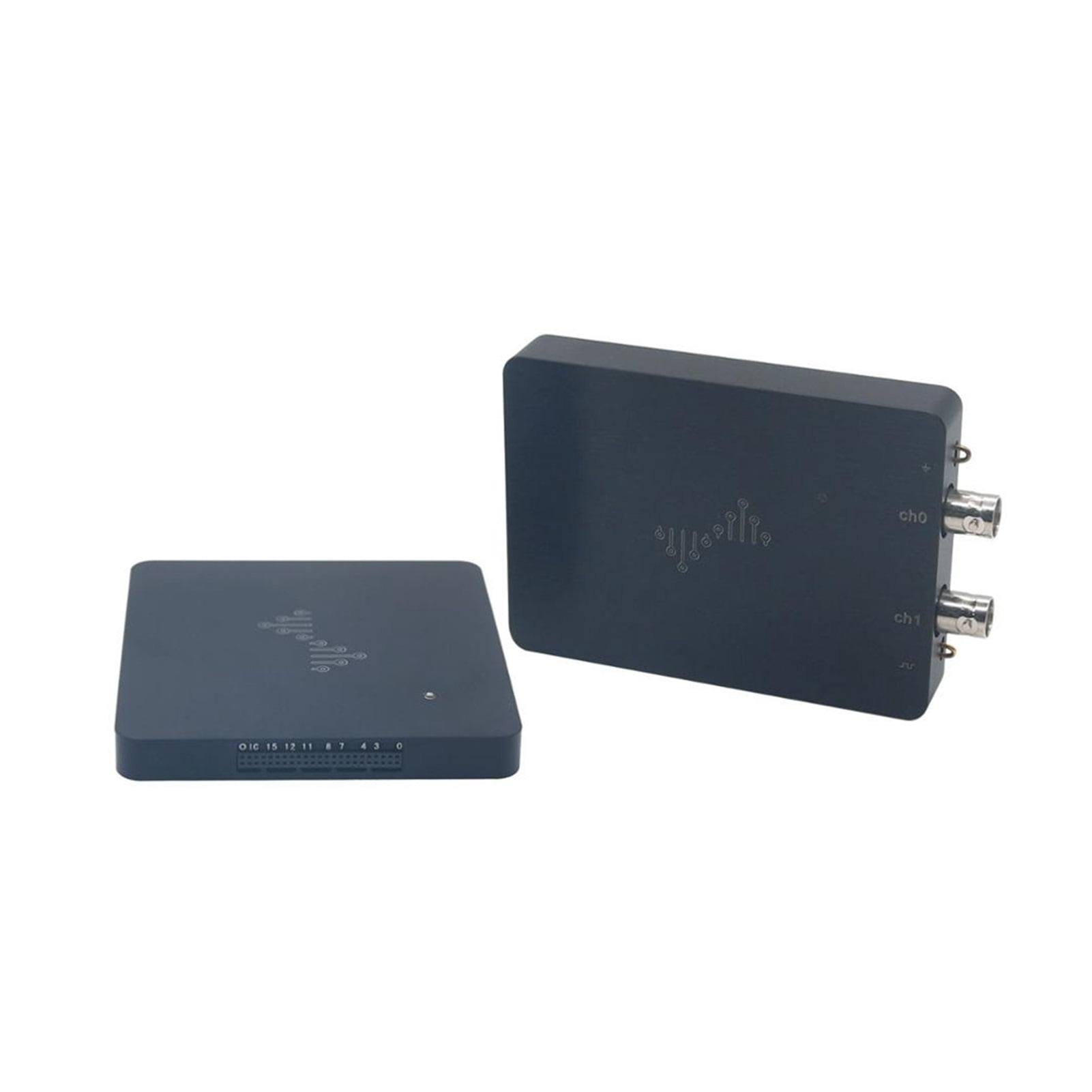

• Kit Logic Analyzer Dual Channel + Powerful Oscilloscope
• Description:
• - The project aim at creating an Open-Source, Low-cost & Extensible electronic instrument for makers and electronic enthusiasts is a powerful logic analyze and oscilloscope tool and you no need to buy expansive any more.
• - Is a USB - -based logic analyzer.Based on Xilinx Spartan - 6 FPGA + SDRAM product architecture, can provide up to 400 MHZ real-time sampling, the status of 30 MHZ sampling,sampling depth of 16 M * 16 channel.
• Specifications:
• - Max Samplerate: 400MHz @ 4 Channels;200MHz @ 8 Channels;100MHz @ 16 Channels
• - Max Sample Depth:1G(stream mode)/16M(buffer mode)
• - Adjustable Threshold:0 ~ 5V (Continuous)
• - Advanced Trigger:16 stages
• - Protected Voltage: ±30 V (DC+AC peak)
• - Input Characteristics: 250K // ~7 pF
• - Input Channel Analog Bandwidth:50MHz
• - Max State Clock Input:50MHz
• Specifications:
• - Open source
• - Unibody aluminum shielded case
• - Auto zero skew adjustment
• - Upgradable Hardware
• - Advanced digital trigger
• - Deep sample depth
• - USB interface, USB powered
• - Two channels
• - Signal Generator
• Package List:
• - 1 x Kit Logic Analyzer Dual Channel
• - 1 x Powerful Oscilloscope
